| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Feature: | High-frequency Vibration, 3000 Times/min | Purpose: | Used In Dry-wet Filter, Grading And Dewatering Of Various Materials |
|---|---|---|---|
| Characteristics: | Low Amplitude, High Efficiency, High Screening Frequency And Low Noise | Material: | Stainless Steel 304, 316L Etc. |
| Screen Decks: | 1~2 Decks | Exciting Force: | 3KN~15KN |
| Vibrating Motor: | 2 Pole Motor, Verticle Arrangement | Application: | Creamic, Slurry, Grain, Pharmacy, Beverage, Chemcial Etc. |
| High Light: | wet vibrating screen,sieve separator machine |
||

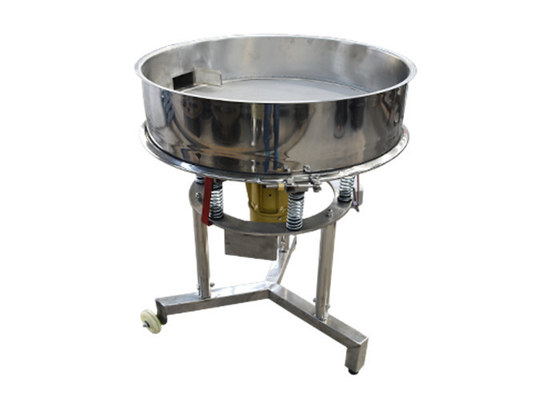

Introduction of High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
With high efficiency, small amplitude and high screening frequency, the Circular High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering is an effective equipment for fine material screening and grading, which is widely used in mining industry.
Working Principle of High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
The high-frequency vibrating screen uses high-frequency vibration, so that the tension on the surface of the slurry cannot be preserved and destroyed. At the same time, the fine material also oscillates at a high speed, which speeds up the effect of high-density useful minerals and segregation, and increases the probability that the smaller-sized material will contact the sieve.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
More Information About High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application |
ceramic glazes, powder coating, soybean milk, slurry etc. |
Features of High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
1. The amplitude is small, the frequency is high, can reach 3000 times/min, the screening effect of fine-grained, high-viscosity materials is more obvious, the effect is better.
2. Unique design of vibro sifter is one perfect choice for high capacity separation of slurry.
3. High screening accuracy, screening particle size can reach more than 400 mesh, a wide range of use, any powder, grain, mucus can be applied.
4. Low energy consumption, high efficiency, compared with similar models, energy consumption can be reduced by half and production can be doubled.
5. Simple and easy to use structure, small size, light weight, convenient installation and movement, easy maintenance and long service life.
6. Unique screen structure, loading network is convenient and fast, 3 to 5 minutes can be installed.
Technical Parameters of High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Application of High Frequency Rotary Vibro Sifter Machine for Paper Pulp Filtering:
The round high frequency vibro sieve machine is widely used in salt, instant potatoes, animal feed, milk, sugar, spices, starch, cereals and grains, tobacco, vegetable and pickle canneries, soybean oil, teff, instant coffee granules, chocolate powder, soybeans, powdered milk, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, poultry and seafood processors.
