| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Feature: | High-frequency Vibration | Frequency: | 3000 Time Per Minute |
|---|---|---|---|
| Exciting Force: | 3KN~15KN | Purpose: | Used In Dry-wet Filter, Grading And Dewatering Of Various Materials |
| Power Source: | One Set Of Verticle Vibrating Motor | Movement: | Three Dimensional Vibration |
| Material: | Stainless Steel 304, 316L Etc. | Application: | Ceramics, Slurry, Powder Coating, Brick Making, Chemical Fertilizer Etc. |
| High Light: | wet screening equipment,wet vibrating screen |
||

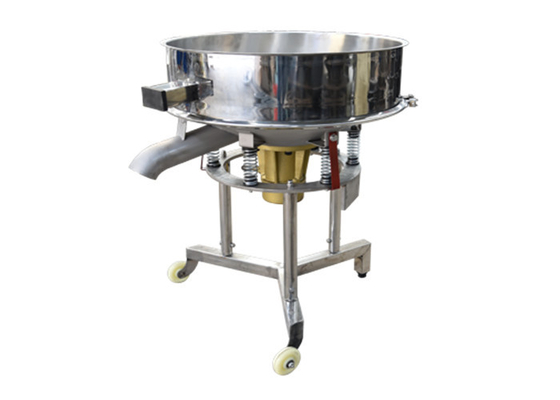

Introduction of High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation:
High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation features of high frequency, low amplitude and low noise, which make fine material oscillate at a high speed on screen surface, break slurry’s surface tension, increase contact frequency of material and screen mesh, thus raise screening and filtering efficiency greatly.
Features of High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation:
1. Simple and easy to use structure, small size, light weight, convenient installation and movement, easy maintenance and long service life.
2. Low energy consumption, high efficiency, compared with similar models, energy consumption can be reduced by half and production can be doubled.
3. Unique design of vibro sifter is one perfect choice for high capacity separation of slurry.
4. Unique screen structure, loading network is convenient and fast, 3 to 5 minutes can be installed.
5. High screening accuracy, screening particle size can reach more than 400 mesh, a wide range of use, any powder, grain, mucus can be applied.
6. The amplitude is small, the frequency is high, can reach 3000 time/min, the screening effect of fine-grained, high-viscosity materials is more obvious, the effect is better.
Technical Parameters of High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation:
|
Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) |
Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Moving Trajectory of High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation:
Application of High Frequency Vibrating Sieve for Powder Coating Powder Solid Liquid Separation:
The high frequency vibrating sieve is widely used in milk, sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil, poultry and seafood processors.
Contact: Ms. Magie
E-mail: sale@aarealmachine.com
magiecn@gmail.com
WhatsApp/WeChat: 0086-15637361027
Website: https://www.aarealmachine.com
Contact Person: Ms. Magie
Tel: 86-15637361027
Fax: 86-373-3988367
