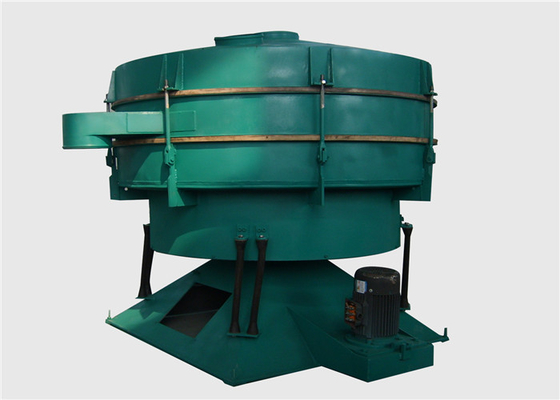

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive

  • High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive
  • High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive
High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: Soft Rock Screening Does Not Destroy The Particles Original Structure Of The Material And Not Easy To Produce Static Electricity Motion: Involute Spiral Motion, Imitate The Manual Screening Action
Screening Accuracy: Up To 90 ~ 99.9% Mesh Cleaning Method: Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.
Diameter: 600mm, 1000mm, 1200mm, 1500mm, 1600mm, 2000mm, 2100mm Etc. Optional: Pneumatic Lifting Devices, Quick Clamps Etc.
Purpose: Can Be Used For Material That Is Flammable, Explosive And Easy To Generate Static Application: Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives, Calcium Carbonate Etc.
High Light:

Food Additive Tumbler Sieve

,

glass beads Tumbler Sieve

,

Food Additive Rotary Vibrating Screen

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive



Overview of High Precision Rotary Tumbler Screening Machine for Food Additive​:

  Tumbler screening machine is an efficient sieving equipment which is designed to meet the large out put, high-density sieving of the material. It is the most effective simulation of artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than the common cylinder sieve), for the processing of all the fine and ultra-fine powder and specialmaterials, particularly suitable for materials which are difficult to classify.

  Basically the movement of a tumbler screening machine can be compared to natural hand screening. For the control screening, fractionating and de-dusting of dry, powdered and granular products. Particularly suitable for high feed rates and multi-deck separations of fine, lightweight products which are difficult to screen.

  Unlike a typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes.



Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static



Working Principle of High Precision Rotary Tumbler Screening Machine for Food Additive​:

   Tumbler screen is a kind of evolving from artificial screen. The movement of circular motion and toss (upward parabolic movement) are fully embodied. By adjusting the Radial angle and Tangential angle to change the amplitude of circular motion and toss. Advanced technology and design for better performance in round screen. The motion of tumbler sieve is double pendulum movement that generated by ordinary vertical motor drives eccentric wheel. The material forms a regular gradually grounding parabolic motion by adjusting the radial angle and tangential angle.

    In particular with fine products, the screen mesh openings tend to clog up and it is imperative that this be avoided if continuous operation is to be guaranteed. Various very effective screen cleaners are available for this purpose. The modular design enables different setup variations. The product can be re-screened 2 to 3 times to increase yield and screening efficiency. Other possibilities are integrated control screens or reversed screening with which the finest dust is separated first followed subsequently by coarser separations.

   While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.

  The movement of a tumbler screening machine is usually compared with simple hand screening. The product is continuously fed into the center of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the center and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each deck.

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 0

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 1High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 2



Features of High Precision Rotary Tumbler Screening Machine for Food Additive​:

1. High Yield Screening: five decks screening is available, the diameter is from 600mm to 2600mm; For a single grade of products, expertise can help you get double or even higher production capacity in the same machine.
2. Maximized Screening Efficiency: the principle of tumbler screen is compared with hand screening.Smooth acceleration match with low speed to ensure that the material is always rolling on the screen surface. Especially for dry and low-density particles.
3. Thick & Fine Particles Accurate Grading: the material is fed from the center of the machine, diverging outward along the helical curve. At the same time, as the vertical acceleration increases, the fine particle product is forced through the screen surface.
4. Reduce Fragile Material Damage: hand screening can give the material a gentle treatment. The tumbler screener reproduces the same movement perfectly, used in a variety of situations to avoid particle damage.
5. Rapid Maintenance and Low Cost: the machine dismantled and install just need 15 minutes, the machine can be operation at full capacity continuously in 7 days * 24 hours. Major wearing parts include: screens, seals, rubber balls or brushes.
6. Low Noise, Low Energy Consumption: Due to its simple modular design and low speed operation, the noise of the tumbler screen remains at 60 ~ 70 dB, to ensure smooth and quiet operation.



Mesh Cleaning Method of Tumbler Screeners:

1. Bounce Ball + PU Ring Cleaning

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 3



2. Brush Cleaning Device

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 4High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 5



3. Compressed Air Cleaning Device (Jet Airflow Cleaning)

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 6



4. Jet Airflow + Brush Cleaning

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 7High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 8



5. Elastic Scraper Cleaning

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 9



6. Ultrasonic Technology Cleaning

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 10High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 11



Technical Parameters of High Precision Rotary Tumbler Screening Machine for Food Additive​:

High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 12



Model 600 950 1200 1400 1600 1700 2000 2100 2300 2600 2900
Screen Area Per Layer 0.28m2 0.72m2 1.10m2 1.50m2 1.80m2 2.30m2 2.60m2 3.40m2 3.90m2 5.30m2 6.40m2
Net Site Area 0.36m2 1.20m2 1.57m2 2.20m2 2.50m2 3.20m2 3.54m2 4.60m2 5.30m2 6.76m2 8.60m2
Layers 1, 2, 3, 4, 5 1, 2, 3, 4
Cleaning System Options: rubber ball, brush, compressed air, brush and compressed air, ultrasonic, scraper
Motor Drive Power 0.25KW 1.5KW 1.5KW 2.2KW 2.2KW 4.0KW 4.0KW 4.0KW 4.0KW 5.5KW 5.5KW
Height/Weight (mm/kg)
Single Layer

758/

132

987/

350

1223/

420

1359/

810

1484/

820

1371/

900

1534/

920

1441/

1450

1450/

1490

1774/

1525

1488/

1675

2 Layers

837/

142

1106/

400

1381/

480

1498/

880

1642/

890

1510/

980

1692/

990

1580/

1530

1589/

1575

1967/

1660

1627/

1790

3 Layers

916/

152

1225/

450

1539/

520

1637/

950

1800/

960

1649/

1070

1850/

1080

1719/

1650

1728/

1700

2160/

1810

1766/

1940

4 Layers

995/

162

1344/

510

1697/

590

1776/

1030

1958/

1040

1788/

1140

2008/

1150

1858/

1760

1867/

1825

2353/

1960

1905/

2090

5 Layers

1074/

172

1463/

580

1855/

660

1915/

1110

2116/

1120

1927/

1220

2166/

1230

1997/

1890

2006/

1975

2546/

2130

--



Application of High Precision Rotary Tumbler Screening Machine for Food Additive​:

1. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic etc.
2. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice etc.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material etc.
4. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide etc.
5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon etc.



High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 13High Precision Rotary Vibrating Screen Tumbler Sieve For Food Additive 14

              BALANCE IS IMPORTANT !!                               Pneumatic Lifting Device
