| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | TD |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and plywood wooden case for the spare parts |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per month |
| Lifting Component: | High Strength Rubber Conveyor Belt | Lifting Height: | Max. 40 Meters |
|---|---|---|---|
| Bucket Type: | Q (shallow Bucket), H (arc Bottom Bucket), Zh (medium And Deep Bucket), Sh (deep Bucket) | Characteristics: | Large Conveying Capacity, Simple Structure, Easy Installation, Easy To Adjust, Repair And Maintenance |
| Purpose: | Used For Vertical Conveying Of Powdery, Granular, And Small, Low-grinding Materials With A Bulk Density ≤1.5 T/m³, And Temperature ≤60℃ | Applicable Materials: | Grain, Coal， Sand, Coke, Cement, Crushed Ore Etc. |
| High Light: | industrial conveyor belts,lightweight conveyor belt |
||

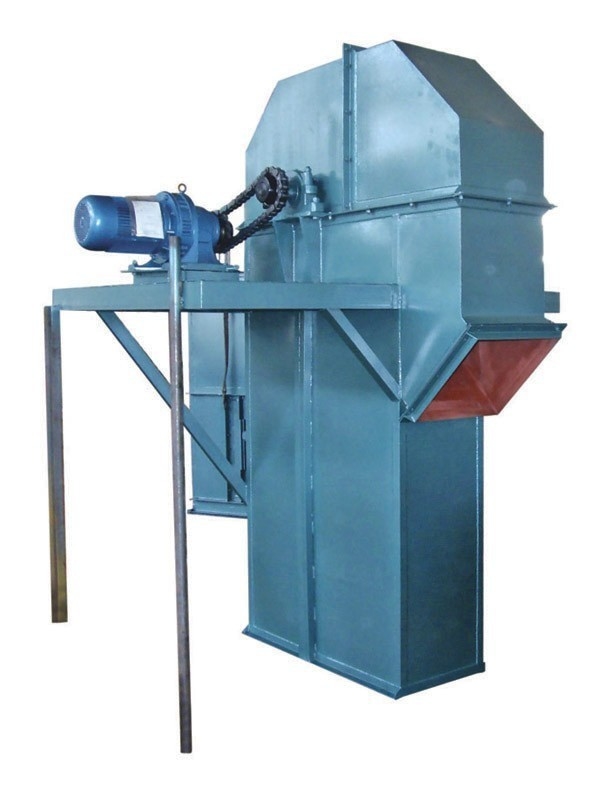

Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates
Application of Belt Type Bucket Elevators:
The belt type bucket elevator is suitable for vertical conveying powder, granular and small block less abrasive bulk material, such as grain, corn, coal, cement, crushed ore etc. The lift height can reach 40 meters. Material temperature is less than 60℃. Compared with the conventional D-type bucket elevator, high conveying efficiency, a variety of bucket types, should be first choice.
1. Large conveying capacity. Compared with D type, the conveying capacity of TD type with the same bucket width is nearly doubled.
2. The traction parts adopt high-strength rubber conveyor belt with high tensile strength and long service life.
3. Simple structure, easy installation, easy adjustment, repair and maintenance.
Features of Belt Type Bucket Elevators:
1. Small driving power
The belt type bucket elevator adopts inflow type feeding and gravity induction type discharging. It uses intensive arrangement large-capacity hopper to convey. There is no no returning and excavating phenomenon when lifting the material. Therefore, the reactive power is less.
2. Broad lifting range
This belt type bucket elevator has few requirements to the material kinds and characteristics. It can not only lift the powdery, granular and ordinary bulk materials, but also can lift the strong abrasive or grinding materials. Good sealing and less environmental pollution
3. Good running reliability
Advanced design principle and machining method ensures the reliability of machine operation. Trouble-free time is more than 20000 hours. Bucket elevator runs smoothly, thus can achieve high lifting height.
4. Long service life
The belt type bucket elevator adopts inflow type feeding. No need to dig material with the bucket. Extrusion and collision between material rarely occur. The machine is designed to ensure that the material in the feeding and unloading will not scattered, which prevents abrasive wearing.
Driving Configuration Table of Belt Type Bucket Elevators:
| Model | Transmission Device Model | Power (KW) | Motor | Reducer Model | |
| Right Transmission Device | Left Transmission Device | ||||
| TD100 | C1 | 1.5 | Y100L-6 | 250-Ⅵ-3Z | 250-Ⅵ-4Z |
| C2 | 2.2 | Y112M-6 | |||
| TD160 | C1 | 3 | Y132S-6 | 350-Ⅵ-3Z | 350-Ⅵ-4Z |
| C2 | 4 | Y132M1-6 | |||
| C3 | 5.5 | Y132M2-6 | 400-Ⅵ-3Z | 400-Ⅵ-4Z | |
| C4 | 7.5 | Y160M-6 | |||
| TD250 | C1 | 5.5 | Y132M2-6 | 400-Ⅵ-3Z | 400-Ⅵ-4Z |
| C2 | 7.5 | Y160M-6 | |||
| C3 | 11 | Y160L-6 | 500-Ⅵ-3Z | 500-Ⅵ-4Z | |
| C4 | 15 | Y180L-6 | |||
| TD315 | C1 | 7.5 | Y160M-6 | 400-Ⅵ-3Z | 400-Ⅵ-4Z |
| C2 | 11 | Y160L-6 | 500-Ⅵ-3Z | 500-Ⅵ-4Z | |
| C3 | 15 | Y180L-6 | |||
| C4 | 18.5 | Y200L1-6 | 650-Ⅵ-3Z | 650-Ⅵ-4Z | |
| TD400 | C1 | 15 | Y180L-6 | 500-Ⅵ-3Z | 500-Ⅵ-4Z |
| C2 | 18.5 | Y200L1-6 | 650-Ⅵ-3Z | 650-Ⅵ-4Z | |
| C3 | 22 | Y200L2-6 | |||
| C4 | 30 | Y225M-6 | |||
| TD500 | C1 | 18.5 | Y200L1-6 | 650-Ⅵ-3Z | 650-Ⅵ-4Z |
| C2 | 22 | Y200L2-6 | |||
| C3 | 30 | Y225M-6 | |||
| C4 | |||||
| TD630 | C1 | 22 | Y200L2-6 | 650-Ⅵ-3Z | 650-Ⅵ-4Z |
| C2 | 30 | Y225M-6 | |||
Technical Parameter Table of Belt Type Bucket Elevators:
| Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||||
| Bucket Type | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | ||
| Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 | ||
| Bucket Width (mm) | 160 | 250 | 315 | 400 | ||||||||||||||
| Bucket Volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 | ||
| Pitch of Buckets (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||||
| Belt Width (mm) | 200 | 300 | 400 | 500 | ||||||||||||||
| Bucket Speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||||
| Material Maximum Block Size (mm) | 25 | 35 | 45 | 55 | ||||||||||||||
| Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||||
| Bucket Type | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |||
| Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |||
| Bucket Width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||||
| Bucket Volume (L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |||
| Pitch of Buckets (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||||
| Belt Width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||||
| Bucket Speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||||
| Material Maximum Block Size (mm) | 60 | 70 | 25 | 35 | 45 | 55 | ||||||||||||
1. Bucket volume in the table is the calculated value. The conveying capacity is calculated according to the filling coefficient of 0.6.
2. The uses of bucket are as follows.
Shallow bucket: conveying materials in damp, easy to agglomerate, difficult to throw. e.g. wet sand, wet coal etc.
Deep bucket: conveying dry, loose materials , and materials easy to throw. e.g. cement, coal briquette, gravel, quartz etc.
